Remove front ornamental grille

Precondition

Engine compartment lid is open.

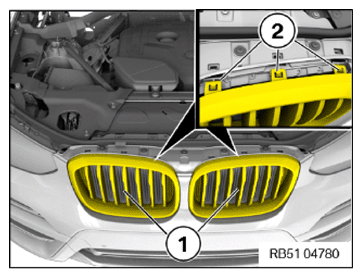

• Undo front ornamental grille (1) out of latch mechanisms (2).
• Release front radiator grill (1) from remaining detents to front and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
