Removing the brake ventilation duct
NOTE:
Description is for left component only. Procedure on the right side is identical.

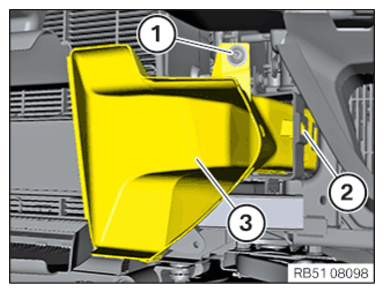

- Loosen screw (1).
- Remove the expanding rivet (2).
- Feed out and remove the brake ventilation (3) duct toward the front.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
