Install the lower oil pan section

• Clean the sealing surface in area (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

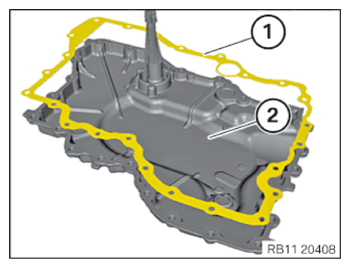

• Remove the seal (1)  .
• Clean sealing surfaces.
• Position seal on the lower oil pan section.

  Parts:  Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the lower oil pan section (2)  .
• Replace screws.

  Parts:  Screws

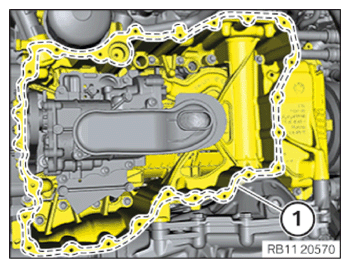

• Tighten the screws in this area (1)  .

Lower oil sump section
M6x25 Replace screws.	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug connection (2)  and lock.
• Attach the cable clip (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position sealing ring (1)  on the oil drain plug (2)  .

  Parts:  Sealing ring

• Tighten oil drain plug (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• F90/F91/F92/F93
• Turn the oil filler cap (1)  counterclockwise and open it.
• Pour in engine oil.

Engine oil S63B44T4
Filling capacity, motor oil change with oil filter element	10 liters

Courtesy of BMW OF NORTH AMERICA, INC.

• Turn the oil filler cap (1)  clockwise and shut it.
• F90/F91/F92/F93

Courtesy of BMW OF NORTH AMERICA, INC.

• Close the oil filler cap (1)  .

• F95/F96

Courtesy of BMW OF NORTH AMERICA, INC.

• Open the oil filler cap (1)  .
• Pour in engine oil.

Engine oil S63B44T4
	Filling capacity, motor oil change with oil filter element	10|

• F95/F96

Courtesy of BMW OF NORTH AMERICA, INC.

• Close the oil filler cap (1)  .

Follow-up work

• Refer to TOPPING UP MOTOR OIL .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to REMOVING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
