Installing the ornamental grille in the center of the bumper cover

Check

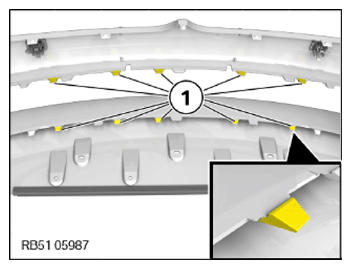

• Check detents (1)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents are damaged.

Measure

• Replace the front bumper cover.

• Correctly position the ornamental grille in the center (1)  of the bumper cover and clip it to the detents (arrows).
• Hook the wiring harness in the holder at the center ornamental grille (1)  of the bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
• Refer to INSTALLING CENTER RADIATOR GRILLE .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
