Install center radiator grille
Check

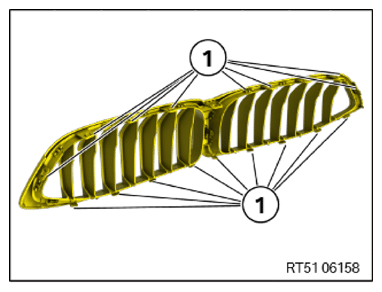

- Check all detents (1) for damage.
Result
» The detents are damaged.
Measure
- Replace center front radiator grill.

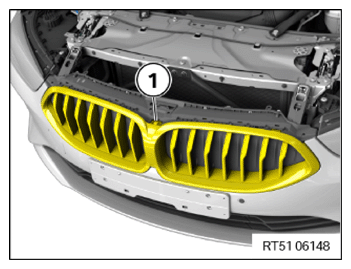

- Position the front ornamental grille in the center and clip it into all detents.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATION
| Front center radiator grill on top air flap control | ||
|---|---|---|
| Oval-head screw M6 | Tightening torque | 4 Nm |
Follow-up work
