Remove tailgate trim panel
Preliminary work
- Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
- Refer to REMOVING THE POWER TAILGATE SWITCH .
- Refer to PARTIAL REMOVAL OF THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT .

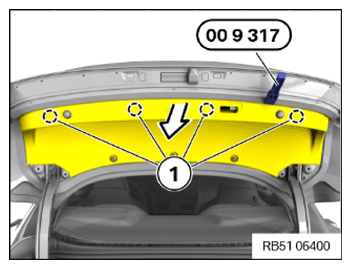

- Unclip the clips (1)
in the direction of the arrow using the special tool 0 490 534 (00 9 317)
.

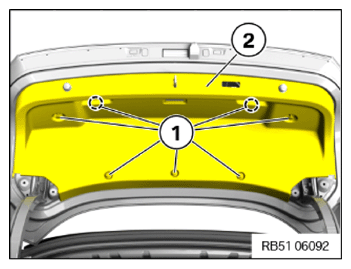

- Remove expanding rivets (1) from the tailgate trim panel (2) .
- Remove tailgate trim panel (2) .
