Partial removal of the trim panel for the tailgate hinge on the left and right
NOTE:
Procedure shows left component only. Procedure on the right side is identical.

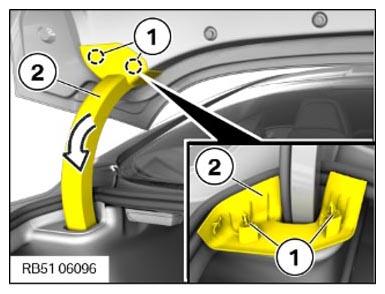

- To avoid damaging the trim panel for the hinge of the trunk lid (2), release it out of the clip fastenings (1) without using a tool and in a jerky manner along the hinge bracket.
Courtesy of BMW OF NORTH AMERICA, INC.
|
