Removing trunk compartment light on trunk lid
Removing trunk compartment light on trunk lid

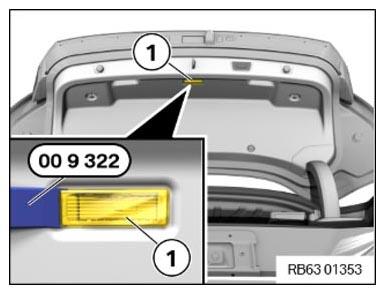

Unclip luggage compartment lamp on the trunk lid (1) with the special tool
0 490 539 (00 9 322)
.
Courtesy of BMW OF NORTH AMERICA, INC.

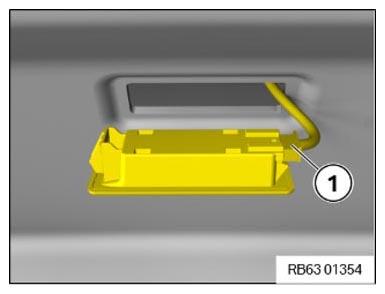

Unlock plug connection (1) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
