Remove rear side window glass
Precondition
- Convertible top is open.
Convertible top flap is in open position.
Wind deflector is removed.
Rear seat backrest is folded.
Preliminary work
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .
- Refer to REMOVING REAR INNER WINDOW CHANNEL STRIP .
- Refer to REMOVING REAR POWER WINDOW REGULATOR .

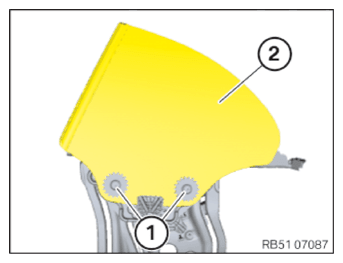

- Release multi-tooth screws (1) and remove side window (2) from power window.
