Remove rear cross connection

Preliminary work

• Refer to REMOVING SEAL FOR FRONT HOOD .
• Refer to REMOVING STAND FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to REMOVING FRONT CROSS CONNECTION .
• Refer to REMOVING THE LEFT AND RIGHT FRONT-END STRUT .

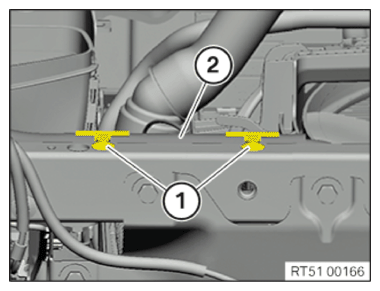

• Loosen the clips (1)  .
• Set wiring harness (2)  aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

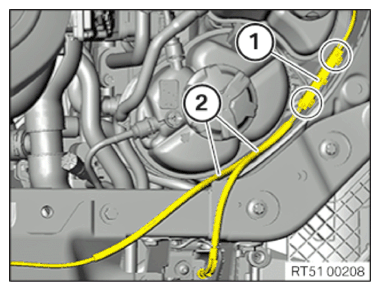

• Unclip the housing (1)  at the marked areas.
• Detach Bowden cables (2)  at the separation point in the housing (1)  where necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

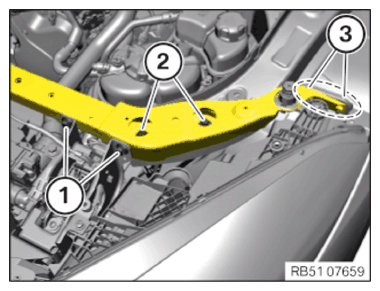

• Release screws (1)  to (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out and remove rear cross connection (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
