(Remove stand for the hood gasket left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

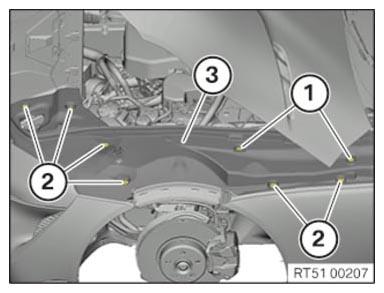

• Loosen the clips (1).
• Loosen the expanding rivet (2).
• Feed out the mounting (3) for hood seal.
