Removing the tail light on the left and right side panel

Preliminary work

• Refer to REMOVING THE CARGO AREA FLOOR COVERING .
• Refer to REMOVING TRUNK COMPARTMENT LIGHT .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANELS .
• Refer to REMOVING THE COVER IN THE WATER CHANNEL ON THE LEFT AND RIGHT .

Remove tail light

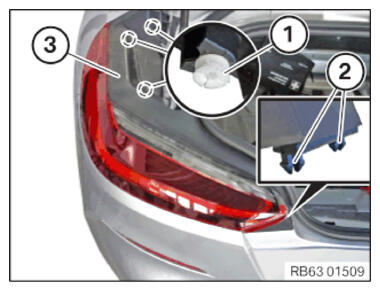

• Detach the trim (3) in the water channel upwards from the clips (1).
• Detach the trim (3) in the water channel from the guides (2) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

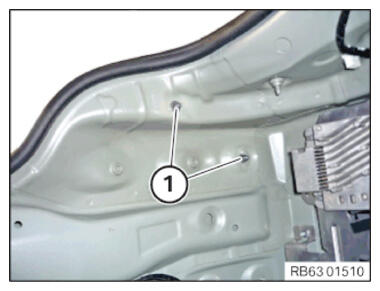

• Loosen nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

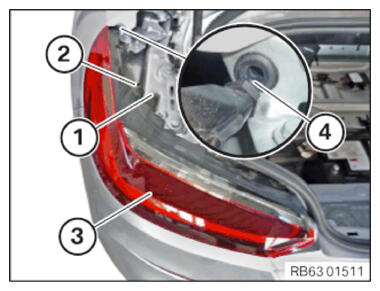

• Loosen nut (1).
• Unlock plug connection (2) and disconnect.
• Guide the tail light (3) to the rear out of the guide (4).

Courtesy of BMW OF NORTH AMERICA, INC.
