(Remove left and right luggage compartment wheel arch trim panels)
(Remove left and right luggage compartment wheel arch trim panels)

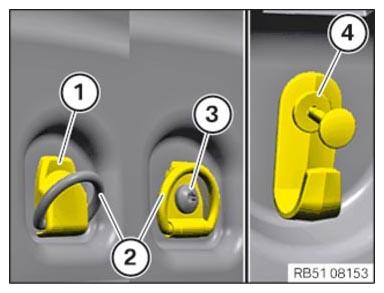

Unclip covers (1) of lashing eyes (2).
Release screws (3) of lashing eyes (2).
Open expanding rivet (4) of bag hook.
Courtesy of BMW OF NORTH AMERICA, INC.

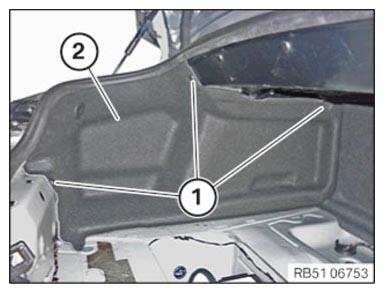

Loosen the expanding rivet (1).
Swivel the lower luggage compartment wheel arch trim panel (2) inwards and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
