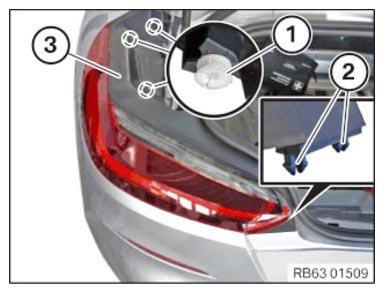

(Removing the cover in the water channel on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Release the cover (3) upwards from the clips (1).
• Release the cover (3) from the guides (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
