Installing the panel for the luggage compartment partition wall

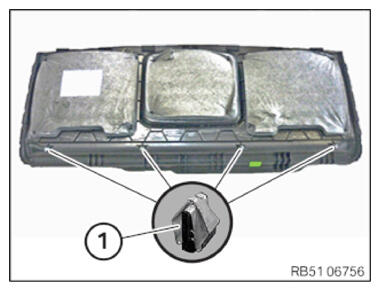

• Check whether the clamps (1)  are present and have damage.

  Damaged or missing clamps (1)  must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

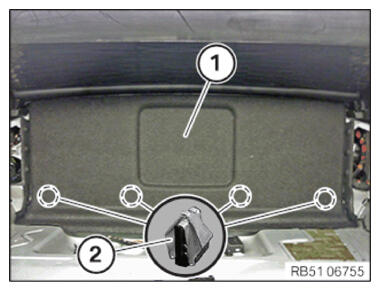

• Feed in the panel for the luggage compartment partition wall (1)  upwards and engage at the bottom of the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
