Installing loading edge trim

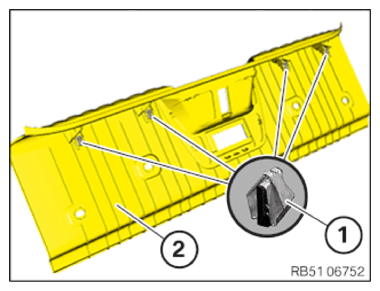

• Check if there are clamps (1)  on loading edge trim (2)  and check them for damage.

  Damaged or missing clamps (1)  must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

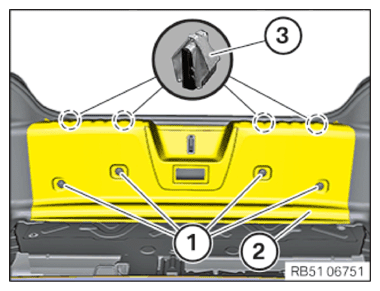

• Guide in loading edge trim (2)  on the tailgate seal and clip it in with clamps (3)  .
• Mount the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
