Installing module bracket

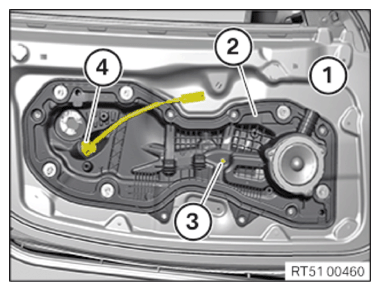

• Correctly position the Bowden cable for the door opener (4)  in the sound insulation (2)  and install.
• Correctly position the sound insulation (2)  on the front door (1)  .
• Tighten nut (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Module bracket to power electric window
  Nut M6	Tightening torque	9.2 Nm

• Connect and lock all the corresponding connectors.
• Fasten the mounting clip of the vehicle wiring harness on the sound insulation (2)  .

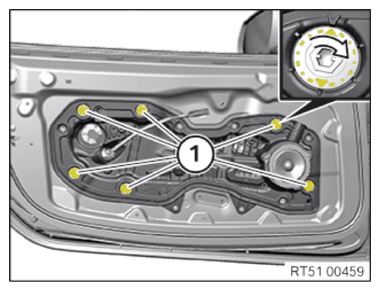

• Lock the locks (1)  in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

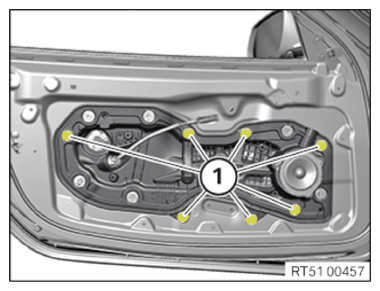

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Module bracket to door
  Oval-head screw	Tightening torque	8 Nm

Follow-up work

• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
