Removing left fold-out compartment

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

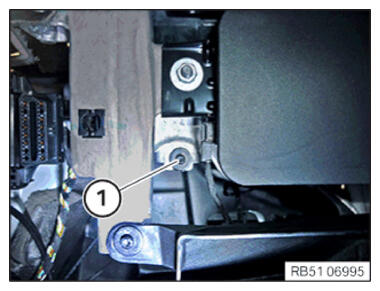

Release the screw (1) in the left footwell behind the fold-out compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

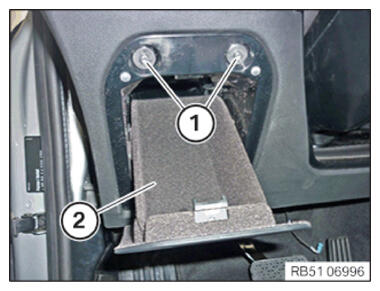

Loosen screws (1) .
Remove the fold-down compartment (2) toward the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
