Installing guide for rear left bumper cover

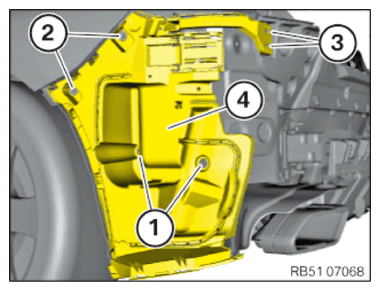

• Correctly position the guide (4)  for the rear bumper cover at the side.
• Tighten nuts (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Guide for rear bumper panel
  Hexagon screw for thermoplastic	tightening torque	2 Nm
  Nut	tightening torque	4.6 Nm
  Screw TS6x20	tightening torque	2.6 Nm

• Tighten down screws (2)  and (3)  .
  TIGHTENING TORQUE SPECIFICATION



  Guide for rear bumper panel
  Hexagon screw for thermoplastic	tightening torque	2 Nm
  Nut	tightening torque	4.6 Nm
  Screw TS6x20	tightening torque	2.6 Nm

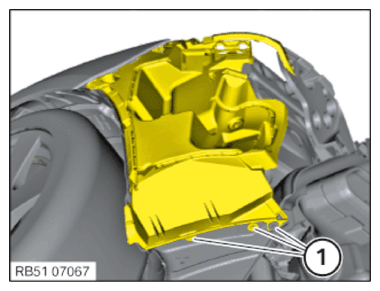

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Rear diffuser
  screw	Tightening torque	3 Nm

Follow-up work

• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
