Installing tail light on center of bumper

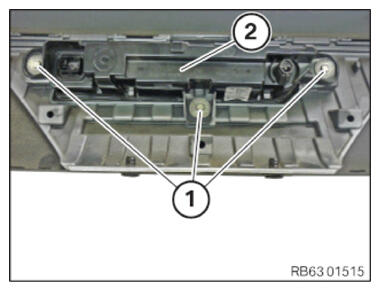

• Positioning tail light on center (2)  of bumper.
• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Tail light on middle bumper
  Screw	tightening torque	3.0 Nm

Follow-up work

• Refer to INSTALLING THE REAR BUMPER TRIM .
• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
