Installing the airbag sensor on the B-pillar

• Replace the screw (2)  .

  Parts:  Screw

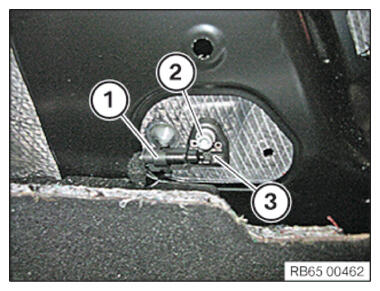

• Correctly position the airbag sensor (3)  on the B-pillar.
• Tighten down screw (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Airbag sensor, B-pillar
  M6 Replace screw.	tightening torque	8 Nm

• Connect the connector (1)  to the airbag sensor (3)  and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE TRIM PANEL FOR THE BODY PILLAR .
• Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
• Refer to INSTALLING THE STORAGE NET .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
