Install rear trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

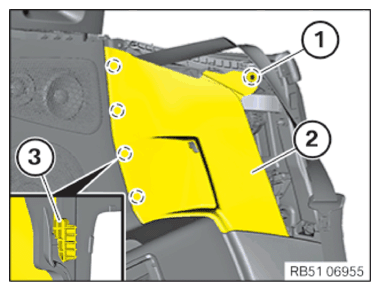

Feed out the rear side trim panel (2) from above and hang it on the hooks (3) .

Tighten down screw (1) .

G16578658

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Side trim panel to support
Screw	tightening torque	2 Nm

Follow-up work

Refer to INSTALLING THE TRIM PANEL FOR THE BODY PILLAR .
Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
Refer to INSTALLING THE STORAGE NET .
