61 62 060 Removing and installing/replacing rear wiper motor

Necessary preliminary tasks:

• Remove REAR WINDOW WIPER ARM
• Remove TRIM FOR REAR LID

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 61 61 5AZ .

Remove rear wiper motor (3).

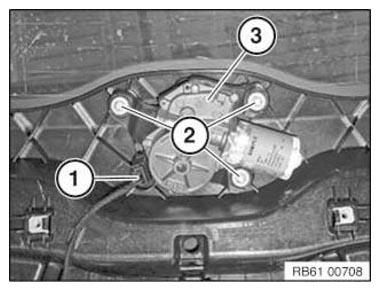

Fig 1: Identifying Rear Wiper Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
