61 62 030 Removing and installing/replacing wiper arm on rear window
Special tools required:

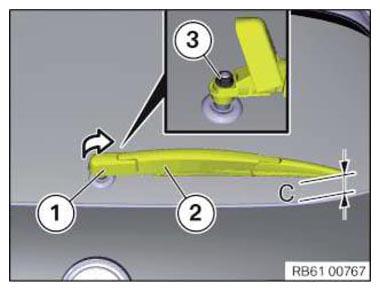

Fold open protective cap (1) in direction of arrow and release nut (3).
Tightening torque 61 61 6AZ .
Press off wiper arm (2) with special tool 61 6 060 and remove.
Installation note:
Before fitting wiper arm, allow wiping system to run two wipe cycles into wiper park position.
Set dimension (C) between wiper arm and rear window edge.
Dimension (C): 35 ±3 mm.
