51 49 000 Removing and installing or replacing trim for rear lid
Necessary preliminary tasks:
- Only loosen both COVERS FOR REAR WINDOW FRAME on left/right in the bottom area, do not remove .
- Remove warning triangle.

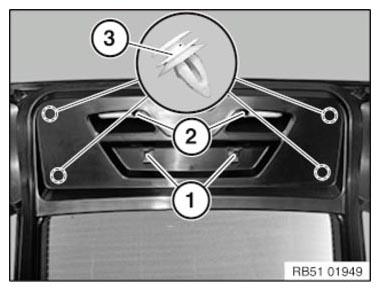

Release screws (1) and remove holder for warning triangle.
Unfasten screws (2).
Release trim panel at clips (3) and remove.
Installation note:
Replace faulty clips (3).
If necessary, lift out clips remaining in body and pre-install on trim panel.
