51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left
Necessary preliminary tasks:

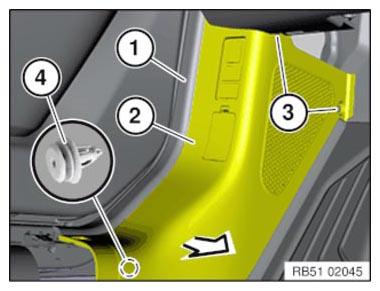

Detach edge protection (1) in area of side trim panel (2).
Release screws (3).
Release side trim panel (2) from clip (4) in direction of arrow and remove.
Unlock and disconnect plug connections, according to the equipment.
Installation note:
Make sure edge protection (1) is correctly seated.
If necessary, lever out clip (4) remaining in bore hole and attach to side trim panel (2).
When replacing, remount the following parts according to the equipment:
