51 45 184 Removing and installing/replacing trim panel for pedal mechanism

Unclip trim panel (1) out of clamps (2).

Lower trim panel (1) slightly and disconnect plug connections behind.

Pull out trim panel (1) towards rear.

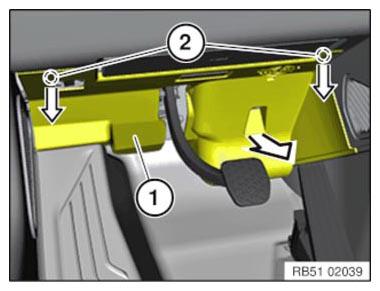

Fig 1: Removing Trim Panel With Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps (2) and guide (3) on trim panel (1) must not be damaged.

Insert guide (3) correctly into corresponding holder on vehicle.

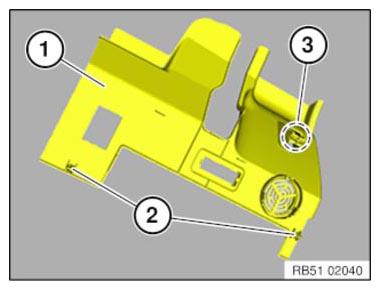

Fig 2: Identifying Clamps, Guide And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, remount the following parts depending on the version:

• HANDS-FREE SYSTEM SPEAKER
• FOOTWELL LIGHT
