51 47 000 Removing and installing/replacing front (inside) left or right door sill cover strip

Special tools required:

• 00 9 325

Fully adjust front seat upwards.

Release door sill cover strip (1) upwards out of clamps (2) using special tool 00 9 325 .

Release door sill cover strip (1) inwards out of clips (3).

Installation note:

Replace defective clips (2) and catches (3).

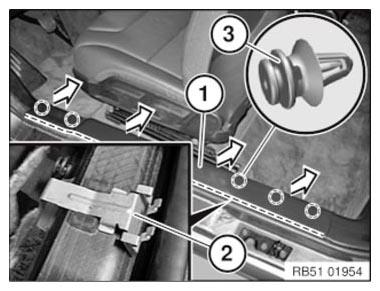

Fig 1: Releasing Door Sill Cover Strip Upwards Out Of Clamps Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.
