51 16 196 Removing and installing/replacing cover for center armrest

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Unclip trim (1) towards rear and remove.

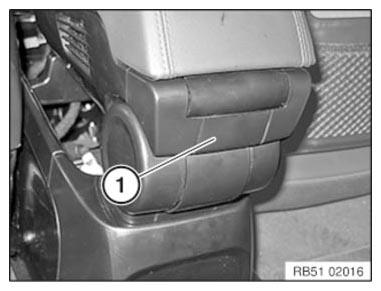

Fig 1: Identifying Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Pull out screw and remove lid for center armrest.

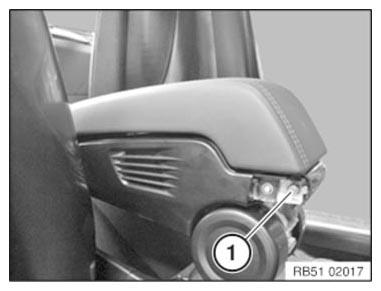

Fig 2: Identifying Center Armrest Nut

Courtesy of BMW OF NORTH AMERICA, INC.
