51 47 156 Removing and installing/replacing left or right capping in luggage compartment

Necessary preliminary tasks:

• Remove luggage compartment wheel arch panel. See LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM  or RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .
• Remove PANEL FOR ROOF PILLAR AT REAR

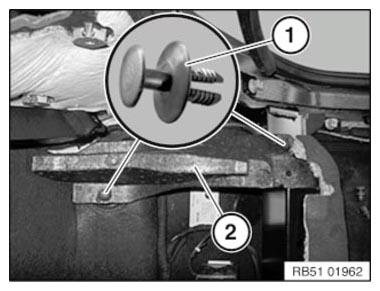

Release expanding rivet (1).

Remove support (2).

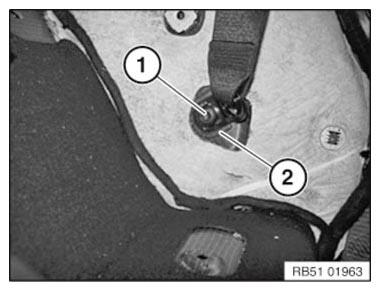

Release screw (1).

Tightening torque 72 11 21AZ .

Installation note:

Make sure end fitting is correctly positioned on body (2).

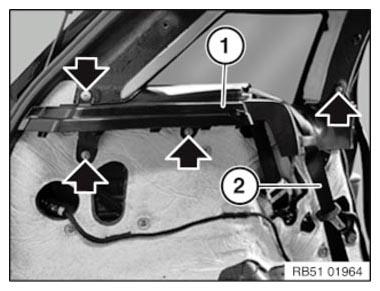

Release screws.

Remove shoulder (1) inwards.

Feed out seat belt (2).
