51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

Necessary preliminary tasks:

• Remove LEFT SIDE TRIM PANEL
• Remove COVER ON TAIL PANEL
• Remove STORAGE SHELF (PARCEL SHELF)

Unclip covers (1) and loosen the screws underneath.

Tightening torque 51 47 1AZ .

Remove the lashing eyes.

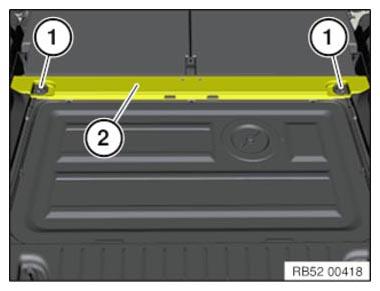

Remove cross member trim panel (2) upwards.

Release expanding rivet (1).

If necessary, disconnect related plug connections.

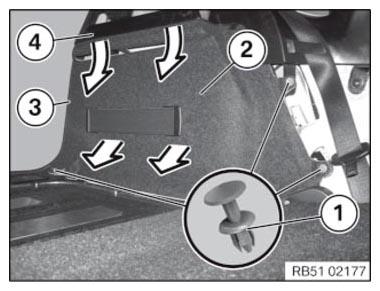

Feed out luggage compartment wheel arch panel (2) in direction of arrow

Installation note:

Luggage compartment wheel arch panel must fit correctly under tailgate rubber seal (3) and shoulder (4).
