41 62 014 Adjusting Tailgate

Special tools required:

• 00 9 322

Read contents of BODY, GENERAL .

Observe BODY GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

Necessary preliminary tasks:

• Partially loosen rear HEADLINING .
• Remove REAR SPOILER .

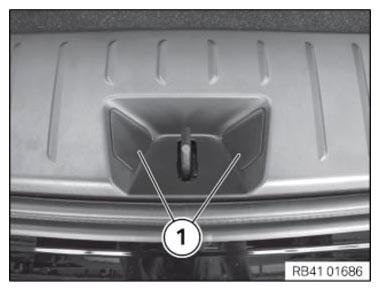

If necessary, remove lock striker.

Lift out cover (1) with special tool 00 9 322 .

Release screws underneath.

Tightening torque 51 24 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting tailgate laterally and in longitudinal direction:

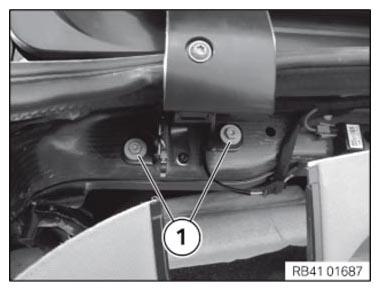

Slacken screws (1) on both sides of vehicle and adjust tailgate.

Tightening torque 41 62 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting the tailgate sideways and vertically:

Open tailgate.

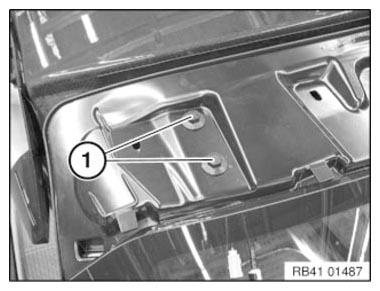

Slacken screws (1) on both sides of vehicle and adjust tailgate.

Tightening torque 41 62 2AZ .

Adjust TAILGATE CATCH .

Adjust STOP PAD .

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

• Tighten all screws and nuts to specified torque.
• Touch up unpainted surfaces in the appropriate color.
