51 71 412 Removing and installing/replacing rear spoiler

Special tools required:

Necessary preliminary tasks:

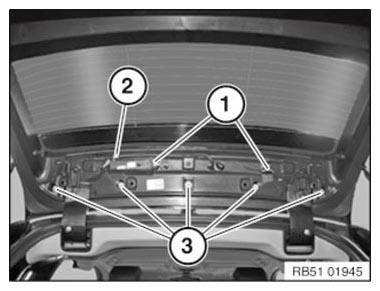

Unlock plug connections (1) and disconnect.

Unlock hose pipe (2) and disconnect.

Unscrew nuts (3).

Tightening torque 51 71 1AZ .

Fig 1: Identifying Hose Pipe, Plug Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

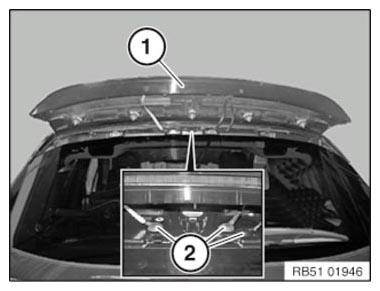

Pull rear spoiler (1) slightly towards rear and lift.

Release grommets (2) from tailgate.

Installation note:

Make sure grommets (2) are correctly seated.

Fig 2: Identifying Rear Spoiler And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

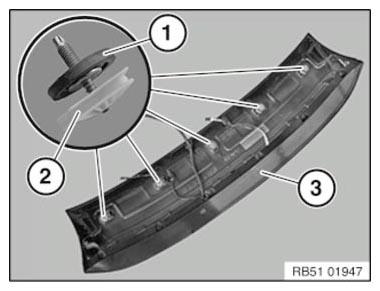

Installation note:

Sealing surface (1) on adjusting elements (2) must not be damaged.

Replacement

Fig 3: Identifying Brake Light, Sealing Surface And Adjusting Elements

Courtesy of BMW OF NORTH AMERICA, INC.

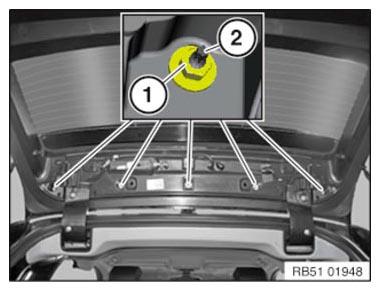

Adjusting the rear spoiler:

Measure short length of rear spoiler to roof using special tool 51 0 010 .

Slacken nuts (1) if necessary and adjust rear spoiler using adjusting screw (2).

Tightening torque 51 71 1AZ .

Fig 4: Identifying Rear Spoiler Nuts And Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
