51 43 002 Removing and installing rear left or right side trim panel

Necessary preliminary tasks:

Detach trim panel (1) from clamps (2) towards inside.

Feed out trim panel (1) toward the bottom from guides in area (3).

Installation note:

Replace faulty clamps (2).

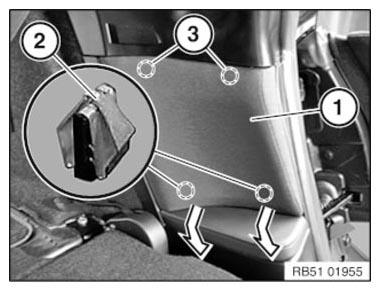

Fig 1: Detaching Trim Panel From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivet (1).

Release trim (2) at clips (3) and remove.

Installation note:

Replace faulty clips (3).

Remove trim (2) with preassembled clips (3).

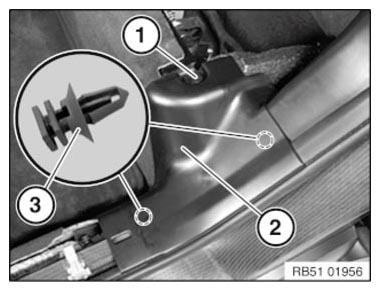

Fig 2: Identifying Expansion Rivet, Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Detach edge protection (1) in area of side trim panel (3).

Release screw (2).

Release side trim panel (3) from clips (4).

Feed out side trim panel (3).

Installation note:

Replace faulty clips (4).

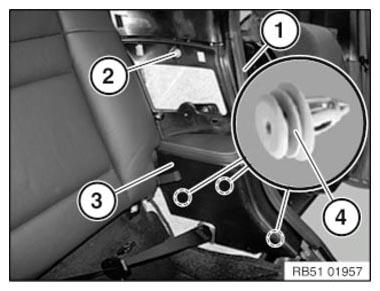

Fig 3: Identifying Side Trim Panel, Edge Protection, Screw And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
