52 26 005 Removing and installing/replacing rear seat

Unclip rear seat (1) upwards on left and right.

Installation note:

Feed seat belt buckles (2) into recesses in rear seat.

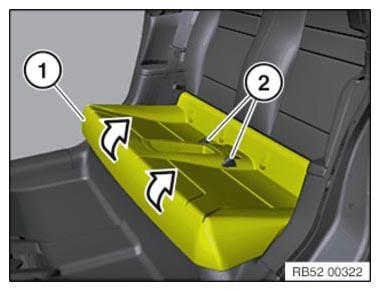

Fig 1: Removing Rear Seat
G11147454Courtesy of BMW OF NORTH AMERICA, INC.
