41 52... Removing and installing/replacing the left or right shroud trim for B-pillar

Read contents of BODY, GENERAL .

NOTE: Observe (REPAIR STAGE 1) procedure!

Necessary preliminary tasks:

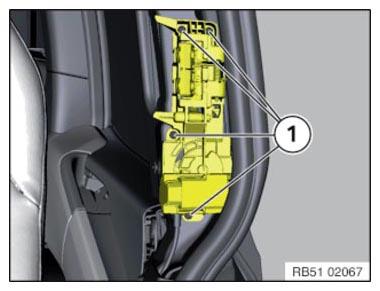

Release screws (1).

Tightening torque 51 22 5AZ .

Feed door opener out of B-pillar.

Installation note:

After installation, carry out function check with door open.

Fig 1: Identifying Inside Door Opener Screws

G11146750

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

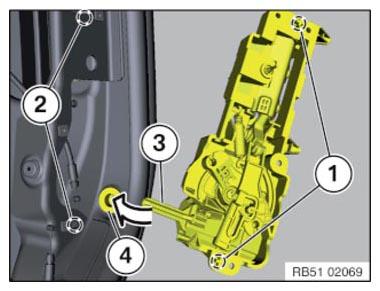

Insert guides (1) into bore holes (2).

Insert pin (3) into grommet (4).

Fig 2: Inserting Pin Into Grommet

G11147143

Courtesy of BMW OF NORTH AMERICA, INC.

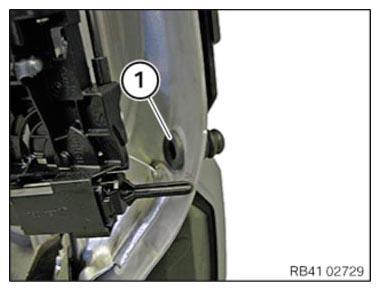

Remove grommet (1).

Fig 3: Identifying Grommet

G11146752

Courtesy of BMW OF NORTH AMERICA, INC.

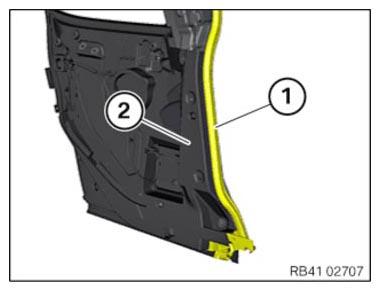

Release gasket (1) from cover (2).

Fig 4: Identifying Gasket And Cover

G11146753

Courtesy of BMW OF NORTH AMERICA, INC.

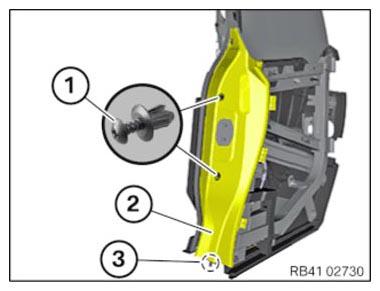

Release expanding rivet (1).

Release shroud trim (2) from latch mechanism (3) and feed out.

Fig 5: Identifying Expanding Rivet, Shroud Trim And Latch Mechanism

G11146754

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

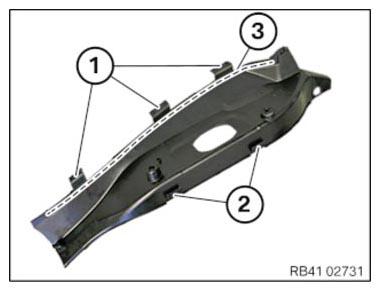

Guides (1 and 2) must not be missing or damaged.

The seal (3) must not be damaged or missing.

Fig 6: Identifying Seal And Guides

G11146755

Courtesy of BMW OF NORTH AMERICA, INC.
