51 43 340 Removing and installing/replacing B-pillar trim panel at top on left or right

Pull out door handle (2).

Release screws (1) by approx. 2-3 turns.

Do not fully unscrew screws (1)!

Tightening torque 51 22 5AZ .

Remove door handle (2) in direction of arrow.

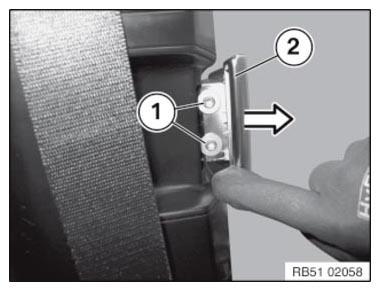

Fig 1: Pulling Out Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (1) from latch mechanisms (2) in direction of arrow.

Feed out trim (1) from seat belt (3) and remove.

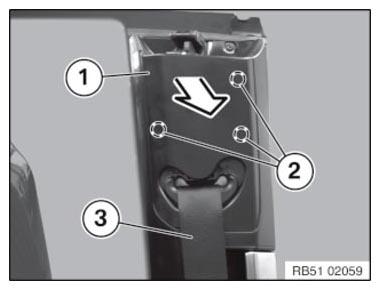

Fig 2: Releasing Trim From Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Lever out trim panel (2) from clips (3) and clamp (4).

Feed out trim panel (2) from seat belt (5) and remove.

Installation note:

If necessary, replace faulty clips (3) and faulty clamps (4).

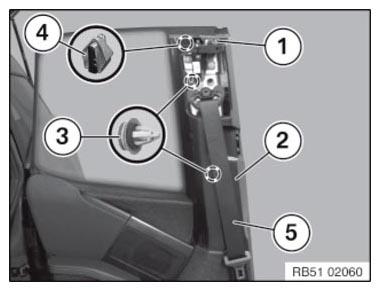

Fig 3: Identifying Seat Belt, Trim Panel, Clips, Clamp And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
