41 52 040 Removing/Installing/Replacing Left Or Right Rear Door Outer Skin

NOTE: Read contents of BODY, GENERAL .

Observe procedures for REPAIR STAGE 1 .

Necessary preliminary tasks:

The following expendable items are required:

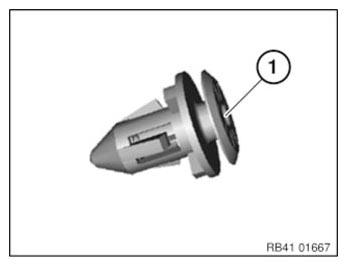

  1. Clip, quantity: 11
G11146728Courtesy of BMW OF NORTH AMERICA, INC.

Removal

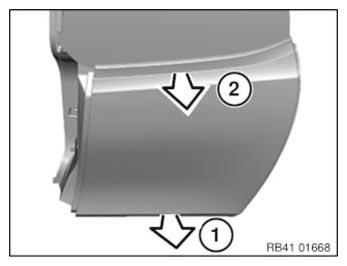

  1. Release door outer skin outwards from the bottom side with a forceful jerk.
  2. Then pull off door outer skin from the top side.
G11146762Courtesy of BMW OF NORTH AMERICA, INC.

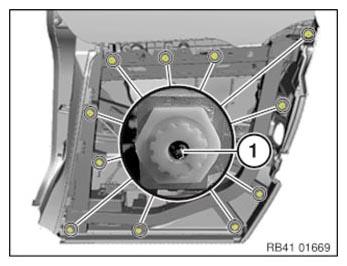

Remove clips (1) from adjusting elements.

G11146763Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

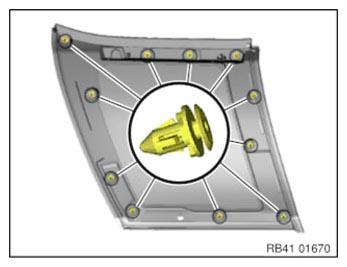

Insert new clips into door outer skin.

G11146764Courtesy of BMW OF NORTH AMERICA, INC.

Installation

G11146765Courtesy of BMW OF NORTH AMERICA, INC.

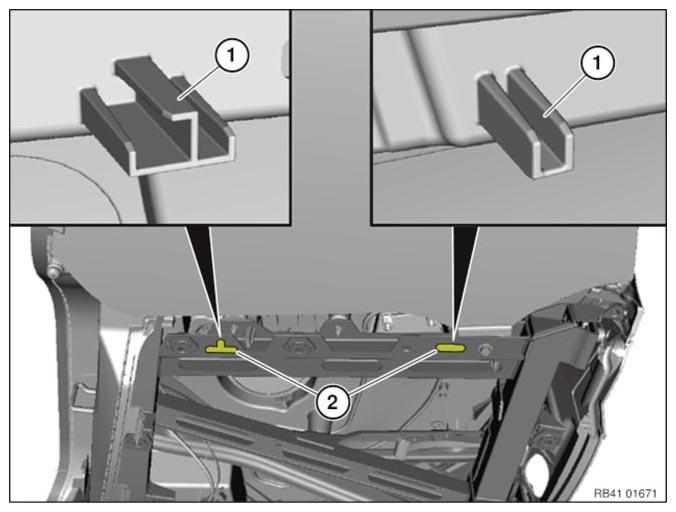

NOTE: On installation, the positioning aids (1) must fit into the recesses (2) on the door window frame.

The door outer skin is installed in reverse order to removal.
