51 12 812 Replacing left deformation element (version with range extender)

Necessary preliminary tasks:

Release screw (1) and allow sensor (2) to hang downwards.

Installation note:

Ensure that the holder (3) is correctly positioned.

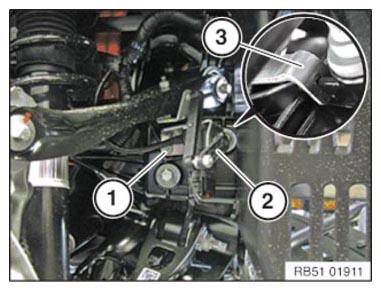

Fig 1: Identifying Holder, Screw And Allow Sensor

G11146853

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws and nuts.

Tightening torque 18 32 5AZ and 18 32 6AZ .

Remove heat shield (1).

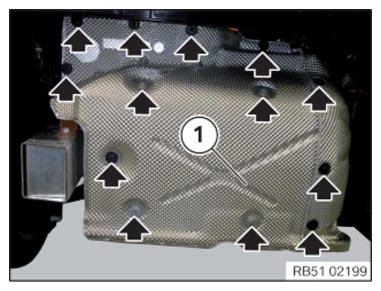

Fig 2: Locating Heat Shield Screws And Nuts

G11146857

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and screw (2).

Tightening torque 18 32 5AZ and 18 32 6AZ .

Feed out heat shield (3) downwards.

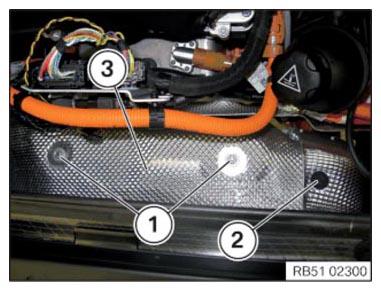

Fig 3: Identifying Heat Shield, Screws And Nuts

G11146858

Courtesy of BMW OF NORTH AMERICA, INC.

Support exhaust system.

Release screws (1).

Tightening torque 18 20 1AZ .

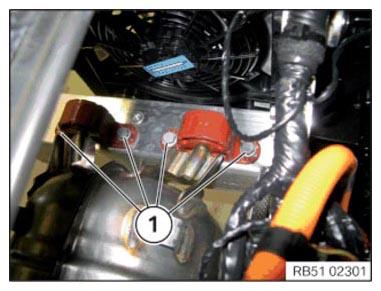

Fig 4: Identifying Exhaust System Screws

G11146859

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fold up insulation (2) in bottom area.

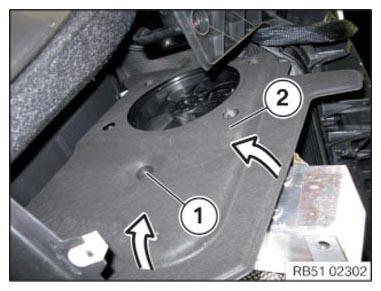

Fig 5: Folding Up Insulation

G11146860

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 17 42 2AZ .

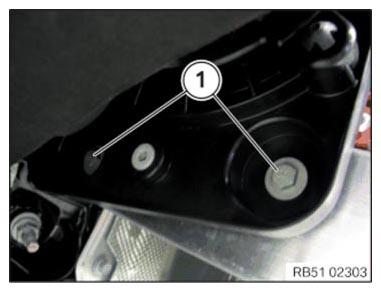

Fig 6: Identifying Electrical Fan Screws

G11146861

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 12 6AZ .

Pull out deformation element.

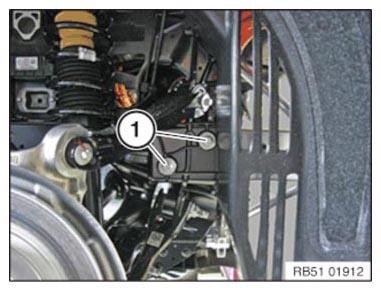

Fig 7: Identifying Rear Bumper Screws
