51 12 050 Removing and installing/replacing support for rear bumper panel

Necessary preliminary tasks:

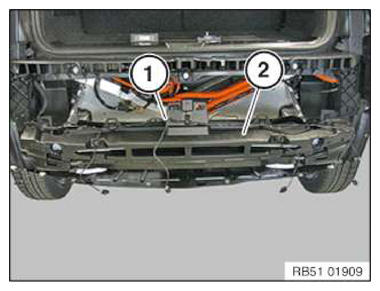

Feed out wiring harness (1).

Unclip holder (2) from support.

Fig 1: Identifying Wiring Harness And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

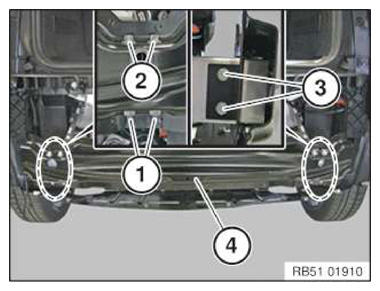

Release nuts (1) and remove screws (2).

Release screws (3) and remove support (4).

Tightening torque 51 12 5AZ .

Fig 2: Identifying Rear Bumper Support, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
