51 47 440 Removing and installing or replacing rear carpet on seat pan

Necessary preliminary tasks:

• Remove both front seats. See REMOVING DRIVER'S SEAT and REMOVING PASSENGER'S SEAT .
• Remove REAR SEAT
• Remove BOTH DOOR SILL COVER STRIPS
• Remove COMPLETE CENTER CONSOLE

Release expansion rivet (1).

Release trim (2) at clips (3) and remove.

Installation note:

Replace faulty clips (3).

Remove trim (2) with preassembled clips (3).

Feed out associated cables.

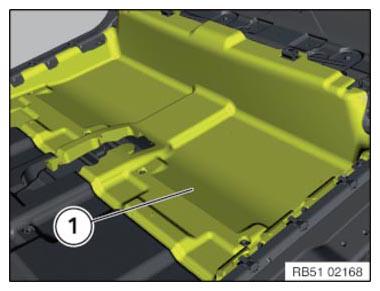

Take out carpet (1) toward the top.

Installation note:

Make sure apertures and attachment points are in correct position.
