51 47 315 Removing and installing/replacing front carpet for passenger compartment
Necessary preliminary tasks:
- Remove both front seats. See REMOVING DRIVER'S SEAT and REMOVING PASSENGER'S SEAT .
- Remove COMPLETE ACCELERATOR PEDAL MODULE
- Remove CENTER CONSOLE .
- Remove front left/right footwell side trim panel. See SIDE TRIM PANEL, LEFT and SIDE TRIM PANEL, RIGHT .
- Remove INSTRUMENT PANEL TRIM AT BOTTOM MIDDLE

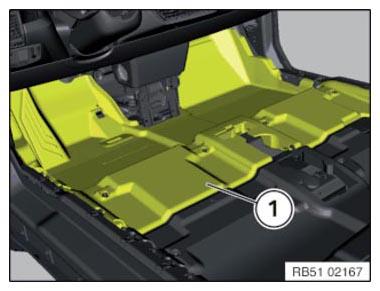

Remove carpet (1) toward rear/top and if necessary feed out cable.
Installation note:
Make sure apertures and attachments points are in correct position.
