51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right
Necessary preliminary tasks:
- Remove TRIM FOR DASHBOARD AT BOTTOM RIGHT
- Remove FRONT DOOR SILL COVER STRIP (INNER) , right

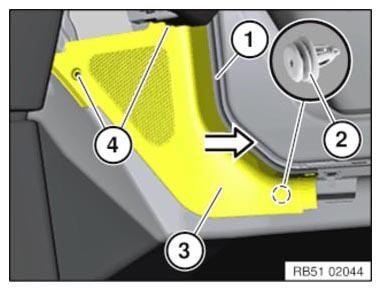

Detach edge protection (1) in area of side trim panel (3).
Release screws (4).
Pull side trim panel (3) off clip (2) in direction of arrow.
Release clip (2) from body and insert in side trim panel (3).
Installation note:
Make sure edge protection (1) is correctly seated.
Replace the faulty clip (2).
