Replacing radial shaft seal for output flange (GS6-45BZ)

Special tools required:

• 23 0 020
• 2 360 126
• 33 1 150
• 33 1 154
• 23 3 210
• 23 3 230

Use only the approved transmission oil.

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

• Remove TRANSMISSION BEARING BLOCK .
• Remove propeller shaft. Refer to COMPLETELY REMOVE AND INSTALL THE PROPELLER SHAFT MADE OF STEEL (INSERTED AT THE REAR) or REMOVING AND INSTALLING CARBON PROPELLER SHAFT (INSERTED) COMPLETE .

Removal:

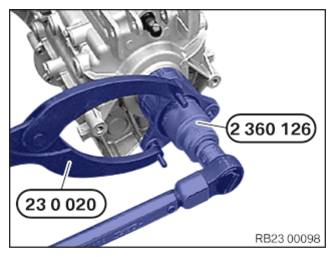

Counter-support the output flange with special tool 23 0 020.

Loosen the collar nut with special tool 2 360 126.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off the output flange (1) from the output shaft with special tool 33 1 150 and adapter plate 33 1 154.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screw on special tool 23 3 210.

Push special tool 23 3 210 over the output shaft and secure tightly in the sealing ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Once again fasten the screw in special tool 23 3 210 and continue turning until the sealing ring is pulled from the transmission housing.

If necessary, remove ring spring of the sealing ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Coat the sealing lips of the new radial shaft seal with transmission oil.

Drive in radial shaft seal up to the limit position using special tool 23 3 230 and plastic hammer.

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten the collar nut with special tool 2 360 126.

Counter-support the output flange with special tool 23 0 020.

Secure collar nut with Loctite 243.

• Loctite 243: BMW Parts Department.
• Tightening torque: 23 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install PROPELLER SHAFT .
• Install TRANSMISSION MOUNTING BRACKET .
