Removing and installing or replacing clutch support (GS7D36SG)

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Remove TWIN-CLUTCH GEARBOX .
Remove CLUTCH .

Removal:

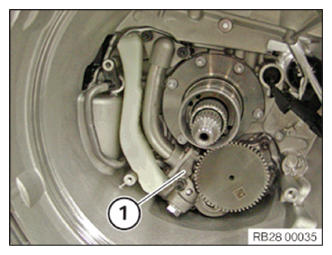

Remove OIL PUMP (1).

Unfasten screws (2).

There is another screw of the clutch support located under the oil pump drive wheel.

Remove clutch support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Before installing clutch support:
Make sure without fail that seal (1) is installed in correct position and piston rings are correctly fitted on drive shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of the clutch support:

Parts : Replace screws and seal.

Secure clutch support screw connections in diagonal sequence.

It is mandatory to comply with the specified order of screw connections 1- 6.

Tighten all screws to 2 Nm.
Release all screws again by a turn of approx. 180°.
Then tighten fully.

Tightening torque: 28 10 10AZ .

Fig 1: Clutch Support Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install OIL PUMP (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the CLUTCH .
Install the TWIN-CLUTCH GEARBOX .
