Installing replacement transmission (GS7D36SG)
Drain transmission oil at oil drain plug.
Tightening torque: 28 00 3AZ .
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations
- Before installing exchange transmission, always flush TRANSMISSION OIL COOLER TOGETHER WITH LINES .
- After completion of repair work, check TRANSMISSION OIL LEVEL
.
Replacement transmission is supplied filled with transmission fluid.
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.
Necessary preliminary work:
- Remove TWIN-CLUTCH GEARBOX .

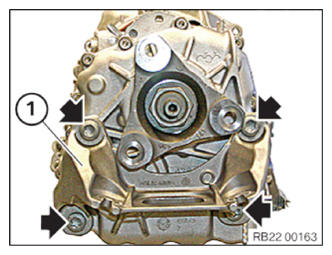

Release screws.
Remove and convert transmission bearing block (1).
Tightening torque: 22 32 1AZ .

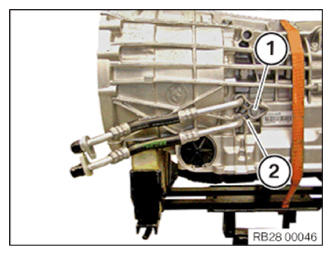

Release screw (1).
Release holder (2) with hydraulic lines from transmission and modify.
Parts : Replace gaskets.
Modify all transportation retainers.
Convert all cable clips.
Convert all seal plugs.
Convert protective cap on input shaft.

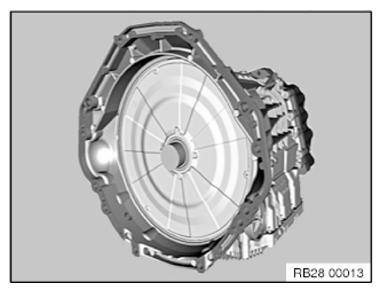

Transmission identification:
- On type plate
Required follow-up work:
- Install TWIN-CLUTCH GEARBOX .
