Removing and installing rear left or right shock absorber

Special tools required:

• 2 358 630

When supporting components, make sure that:

• the vehicle can no longer be raised or lowered
• the vehicle does not lift off the locating plates on the vehicle hoist.

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

• Remove REAR WHEEL .

Removal:

Secure special tool 2 358 630 with wheel studs to drive flange.

Support the steering stub with special tool 2 358 630 and the workshop jack at the wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Lift wheel carrier with workshop jack to the point where the screw can be removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly lower workshop jack until wheel carrier is suspended.

Place workshop jack to side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on support bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

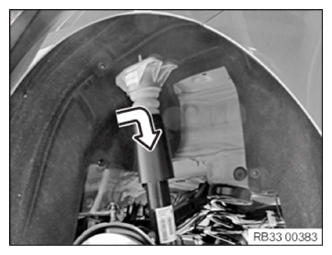

Press shock absorber together and remove upward from wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check protective cap (1) and sealing washer (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Align shock absorber.

Courtesy of BMW OF NORTH AMERICA, INC.

Align support bearing to the body.

Tighten down screws (1).

Tightening torque 33 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Support steering stub with special tool 2 358 630 and workshop jack at wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace screw.

Raise workshop jack slowly until the screw can be inserted in the camber control arm and shock absorber.

Part  : Replace nut (1).

Screw on nut (1) and tighten in normal position.

Tightening torque 33 52 3AZ .

Installation note:

Note direction of insertion of screw.

Tighten down screw connection in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the workshop jack and place to one side.

Remove special tool 2 358 630.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR WHEEL .
