Removing and installing rear left or right shock absorber (EDC)

Special tools required:

2 358 630

WARNING: Vehicle may tilt off vehicle hoist if the workshop jack is incorrectly handled.

When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT:

READ AND COMPLY WITH INFORMATION ON REPLACING SHOCK ABSORBERS .

Necessary preliminary tasks:

Remove REAR WHEEL .

Removal:

Secure special tool 2 358 630 with wheel studs to drive flange.

Support the steering stub with special tool 2 358 630 and the workshop jack at the wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Lift wheel carrier with workshop jack to the point where the screw can be removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly lower workshop jack until wheel carrier is suspended.

Place workshop jack to side.

NOTE: Special tool 2 358 630 can remain on wheel hub.

Release connector (1) from the wheel speed accelerator sensor (2).

Disconnect the wheel acceleration sensor cable from the shock absorber.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on support bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

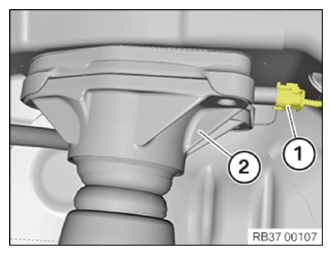

Release the connector (1) from the support bearing (2).

Press shock absorber together and remove upward from wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

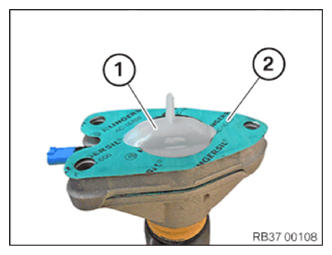

Check protective cap (1) and sealing washer (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Align shock absorber.

Plug in connector (1) on the support bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Align support bearing to the body.

Tighten down screws (1).

Tightening torque 33 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Support the steering stub with special tool

2 358 630 and the workshop jack at the wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace screw.

Raise workshop jack slowly until the screw can be inserted in the camber control arm and shock absorber.

Part: Replace nut (1).

Screw on nut (1) and tighten in normal position.

Tightening torque 33 52 3AZ .

Installation note:

Courtesy of BMW OF NORTH AMERICA, INC.

Note direction of insertion of screw.

Tighten down screw connection in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the workshop jack and place to one side.

Remove special tool 2 358 630.

Required follow-up work:

Install REAR WHEEL .
