Replace top rear wishbone

Special tools required:

2 412 505
33 5 013
33 5 014
335015
2 412 506
33 5 016
33 5 020
33 5 017
2 358 630

NOTE: A wheel alignment must be performed after installation. Refer to CARRY OUT KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .

Necessary preliminary work:

Remove REAR WHEEL .

Removal:

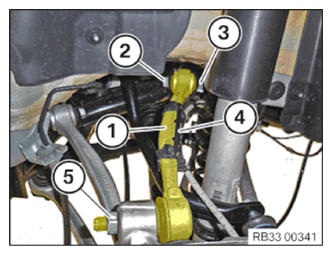

Open clamps and remove cable clip (4).

Slacken nut (5).

Release top wishbone (1) from the wheel carrier.

Release screw (2), and counter-hold on the nut (3) while doing so.

Courtesy of BMW OF NORTH AMERICA, INC.

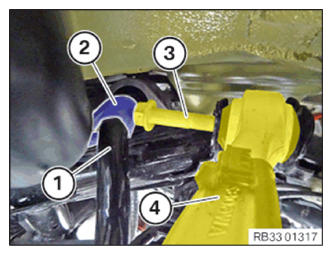

It is imperative to protect the anti-roll bar from damage using a cloth (2).

Remove screw (3).

Remove upper wishbone (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The wishbone screw connection on the rear axle support must be tightened in the normal position. For this purpose, the coil spring must be tensioned.

Position upper wishbone (4).

Replace screw (3).

Parts : Screw

It is imperative to protect the anti-roll bar from damage using a cloth (2).

Insert the screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nuts (3) and (5).

Parts : Nuts

Screw on nuts (3) by a few turns.

Do not tighten screw connection to specified torque yet!

Tighten nuts (5).

Tightening torque 33 32 6AZ .

Mount cable clip (4) on upper wishbone (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert lower spring cup 2 412 505 centrally into coil spring and turn to lowest winding.

Guide spindle 33 5 013, 33 5 014, 33 5 015 from below through the camber link and the lower spring cup 2 412 505.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert top spring cup 2 412 506 sideways into coil spring and turn to the uppermost winding.

CAUTION: Make sure spindle (hexagonal) is correctly seated in upper spring cup 2 412 506!

Pull spindle 33 5 013 down.

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Make sure coil spring is correctly positioned in spring cups.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Center special tools 2 412 505, 2 412 506, 33 5 013, 33 5 014, 33 5 015 to achieve the greatest possible contact surface with the coil spring.

Check installation position of special tools 2 412 505, 2 412 506, and 33 5 013, 33 5 014, 33 5 015, correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten coil spring using special tools 33 5 016 and 33 5 020, gripping the spindle of the spring tensioner with special tool 33 5 017.

Tension the coil spring so that the normal position can be set by lifting the wheel carrier.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 2 358 630 with wheel studs to drive flange.

Insert the universal jack in the special tool 2 358 630.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting normal position:

Attention:

To raise the wheel carrier, the spring absolutely must be tensioned. Do not move the wheel carrier to normal position against the spring force.

Push wheel carrier up to dimension A with workshop jack and special tool 2 358 630.

Dimension A = middle of wheel hub to upper edge of wheel arch

Dimension A - F80 = 343 mm

Dimension A - F82, F83 = 363 mm

Dimension A - F87, F87 Competition US = 359 mm

Dimension A - F87 Competition (non-US) = 351 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (2). In doing so, counter support at the nut (3).

Tightening torque 33 32 5AZ .

NOTE: Use torque wrench with box wrench attachment if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the workshop jack and set it aside.

Remove special tool 2 358 630.

Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting of coil springs in spring pads (top and bottom), if necessary again align and relieve tension.

Remove special tools 2 412 505, 2 412 506, and 33 5 013, 33 5 014, 33 5 015.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REAR WHEEL .
Carry out wheel alignment procedure. Refer to CARRY OUT KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
