Replacing the rubber mounts for the rear axle final drive suspension at rear

Special tools required:

33 0 035
33 0 036
2 361 902
33 4 183
2 361 908
2 475 367
0 494 982
0 494 981

NOTE: Do not press the rubber mount in and out more than once.
For vehicles up to 07/18, the rubber mount with the BMW part number 7 852 495 is to be installed in connection with the rear axle support 2 284 640. Only the rubber mount with BMW part number 7 852 495 may be used for vehicles up to 07/16.
For vehicles from 07/2018, the polyurethane rubber mount with the BMW part number 8 094 690 is to be installed in connection with the rear axle support with the BMW part number 8 097 478. The polyurethane rubber mount with BMW part number 8 094 690 is used as a replacement from 07/16.
Before removing and installing the rubber mount, check which variant is or will be installed!

Necessary preliminary work:

Remove REAR AXLE FINAL DRIVE .
Lower REAR AXLE SUPPORT .

G13692067

Courtesy of BMW OF NORTH AMERICA, INC.

Determine the variant of the rubber mount (1).

Variant (A): Rubber mount with elongated hole (2) (BMW part number 7 852 495)
Variant (B): Polyurethane rubber mount (BMW part number 8 094 690)

Removal of rubber mounts with elongated hole (variant A)

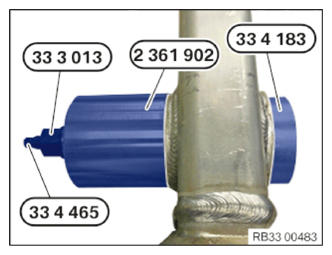

Pull out rubber mount using special tools 33 0 035, 33 0 036, 361 902, and 33 4 183 from rear axle support (1).

G13692068

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of rubber mounts with elongated hole (variant A)

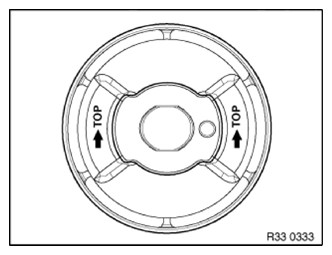

Arrows of the labelling "TOP" must point upwards.

G13692069

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Coat bearing bush on rear axle support and new rubber mount (1) with Circolight.

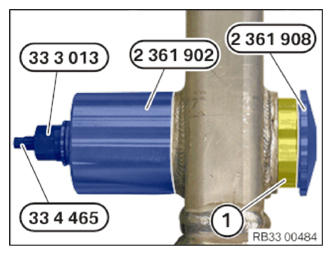

Draw in the rubber mount (1) with special tools 33 0 035, 33 0 036, 2 361 902 and 2 361 908 up to the limit position.

G13692070

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of polyurethane rubber mounts (variant B)

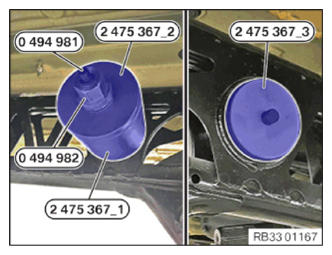

Pull out the rubber mounts with the special tools 2 475 367_1, 2 475 367_2, 2 475 367_3 and 0 494 982, 0 494 981 from the rear axle support (1).

G13692071

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of polyurethane rubber mounts (variant B)

Installation note:

Observe direction of installation!

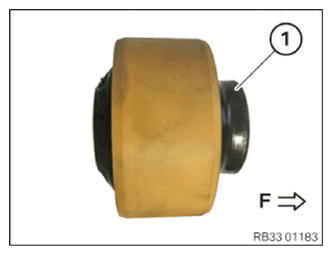

Protrusion (1) must point forwards in the direction of travel (F).

G13692072

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Coat bearing bush on rear axle support and new polyurethane rubber mount (1) with Circolight.

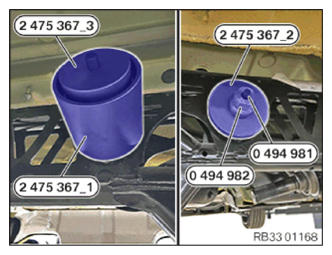

Draw in the polyurethane rubber mounts with the special tools 2 475 367_1, 2 475 367_3, 2 475 367_2 and 0 494 981, 0 494 982 up to the limit position.

G13692073

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Raise REAR AXLE SUPPORT .
Install the REAR AXLE DIFFERENTIAL .
